LKX-MULTI
LKX-MULTI
Conducting autonomous monitoring of overhead lines under all conditions using Laki Power's patented power harvesting technology. Providing reliable images, data and video without the need for external power sources.
Starlink communication
LTE communication
High speed starlink communication
Ultrasonic wind sensor
4 way camera system
Line-powered with patented tech
Starlink communication
LTE communication
High speed starlink communication
Ultrasonic wind sensor
4 way camera system
Line-powered with patented tech
Starlink communication
LTE communication
High speed starlink communication
Ultrasonic wind sensor
4 way camera system
Line-powered with patented tech
Starlink communication
LTE communication
High speed starlink communication
Ultrasonic wind sensor
4 way camera system
Line-powered with patented tech
Camera System
Real-time Situational Awareness in 4K
Real-time Situational Awareness in 4K
Monitor ice build up and calculate
ice load with high precision.

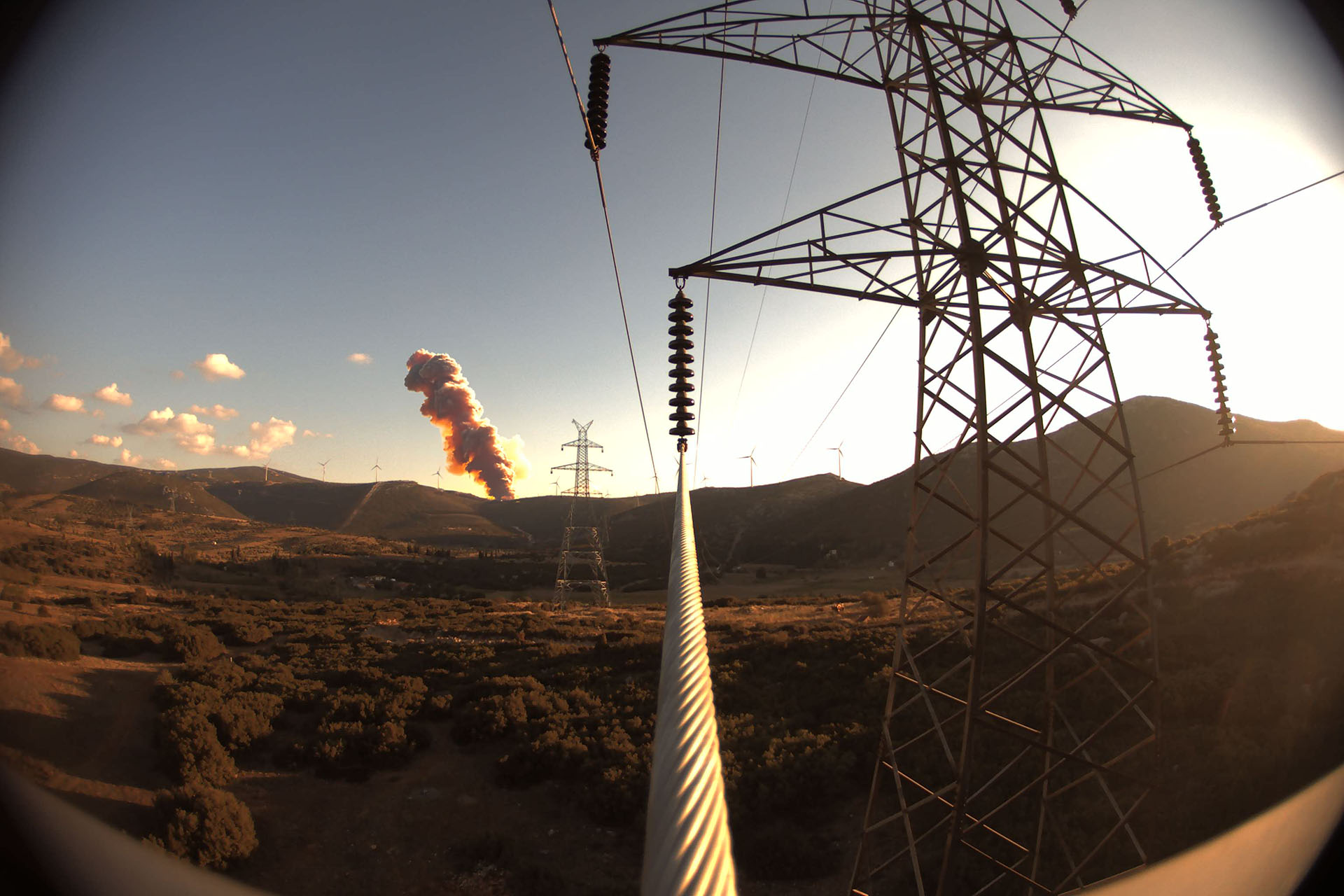

Conductors provide optimal vantage for
monitoring large areas for wildfire smoke.
A video displaying a galloping event,
caused by perpendicular wind and icing.
A video displaying a galloping event,
caused by perpendicular wind and icing.

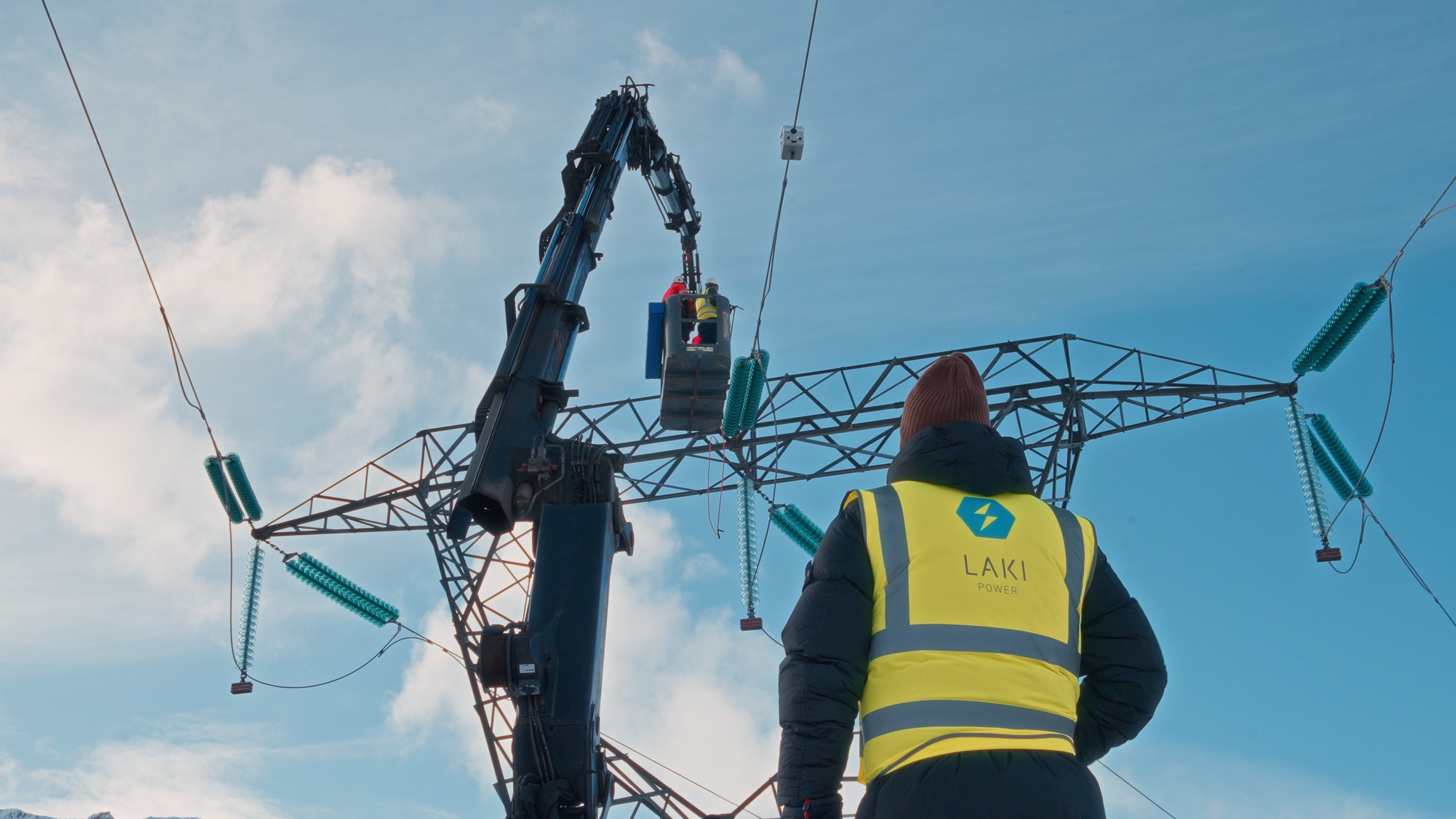

Simple installation
Simple installation
The station can be installed and mounted on both a energized and de-energized line.
The station can be installed and mounted on both a energized and de-energized line.
The LKX-MULTI is installed with six bolts.
Two man crew installation via a bucket truck.

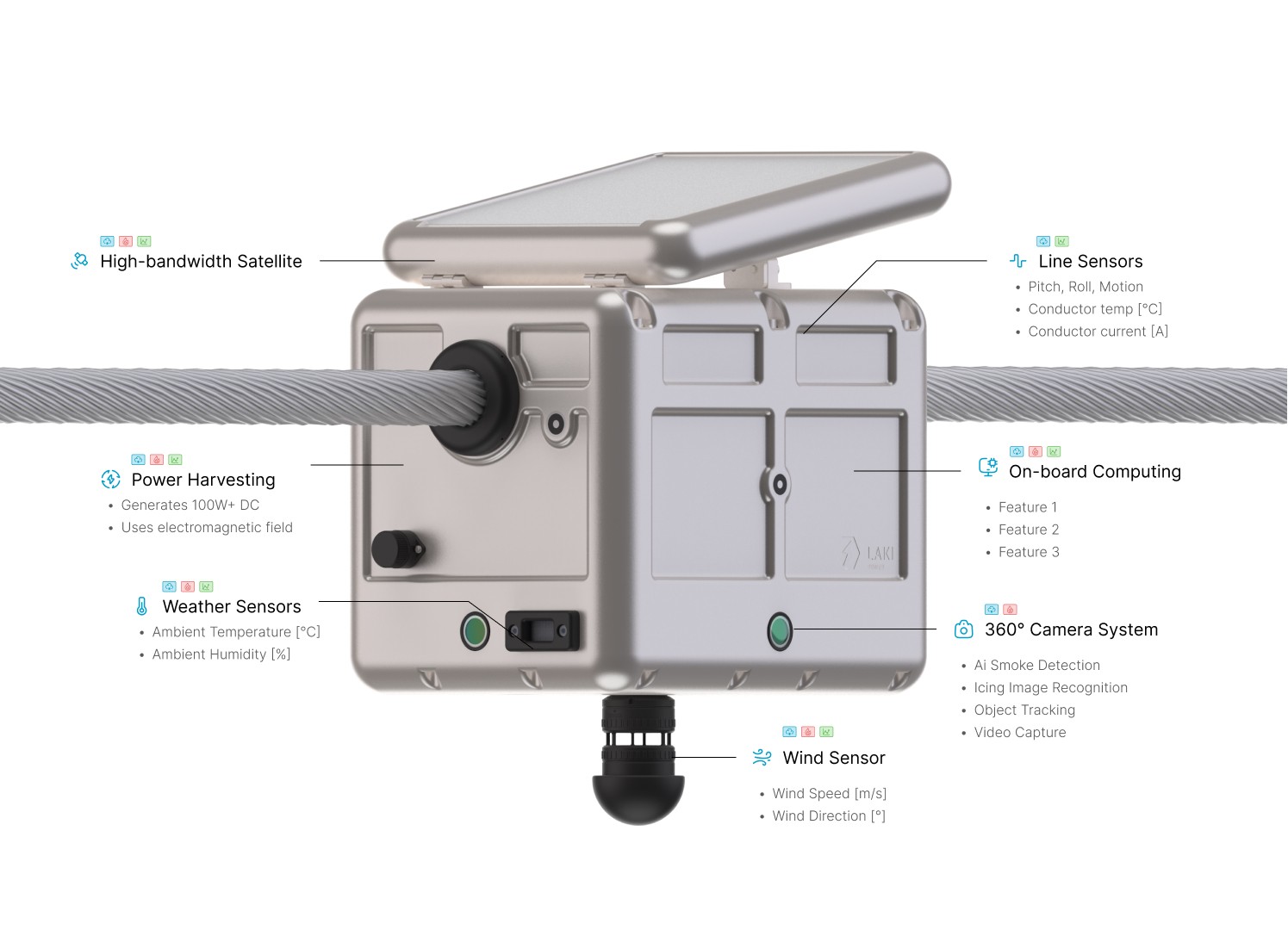

Product Details
2 Way Optical Camera System
2 Way Optical Camera System
Ultrasonic Wind Sensor
Ultrasonic Wind Sensor
Max Resolution
6MP
Speed Range
0-75 m/s
Max Video FPS
25 fps
Speed Resolution
0.1 m/s
Camera Platform
Mobotix S74
Direction Range
360°
Field of View
120°to 180°
Direction Resolution
1°
Line Requirements
Technical Details
Technical Details
Max Line Voltage
735kV
Communication
LTE/UMTS/GMS or satellite
Max Sub-Conductor Current
2000A
Operating Temperature
-40°C to +70°C
Max Sub-Conductor Diameter
50mm (1.97in)
Maintenance
Fully Autonomous
Max Sub-Conductor Temperature
150°C (302F)
Backup Battery Capacity
6Ah
